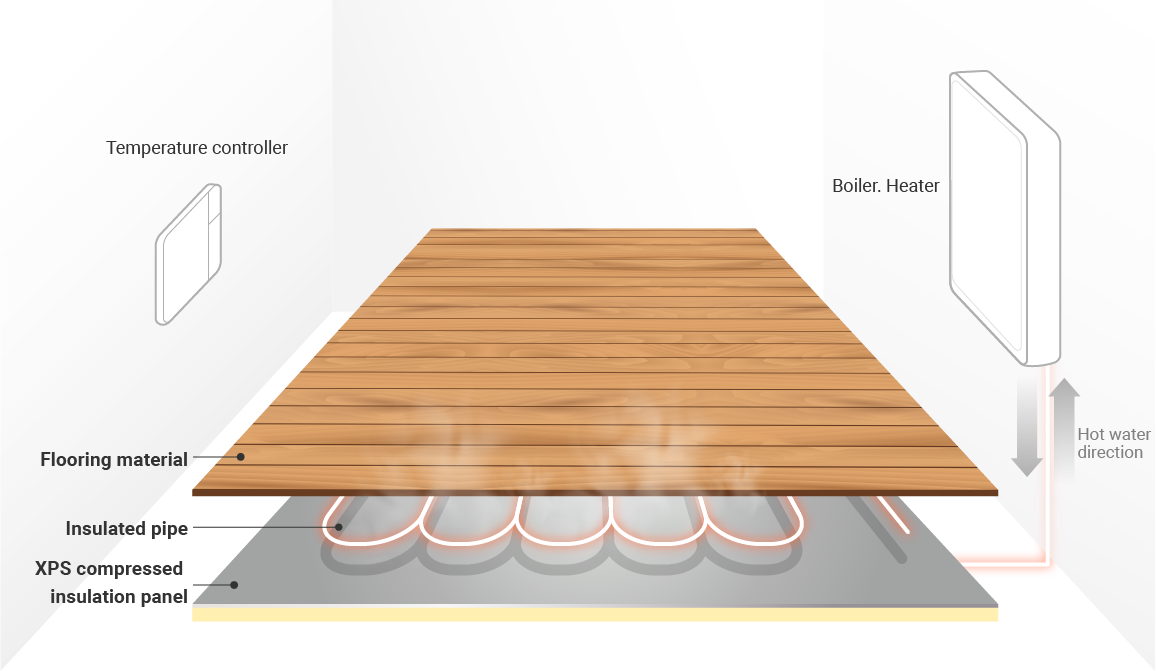

Now solve heating costs, noise between floors, and construction costs at once with NE Dry panel.
NE Dry panel
for space heating- specific
Save heating cost
with high thermal conductivity
Reduce noise between floors with XPS compression insulation panels
Decrease construction cost without removing the existing floor
NE Dry panel
for space heating- specific
Save heating cost
with high thermal conductivity
Reduce noise
between floors with XPS compression insulation panels
Decrease construction
cost without removing the existing floor
Features of NE Dry panel
Four characteristics of the NE Dry panel.
Heating costs and
energy reduction
Saving more than 40% of heating cost without concrete construction (wet heating system), and high heat conductivity which is enabling heating in a short time and reducing energy consumption by shortening boiler operation time.
Robustness
No adverse effects from moisture
as it is not a concrete construction (wet heating system), and improve more than 30% of the noise between floors (reducing floor impact noise)
Fast and affordable construction
It's lightweight which is able to build and heat on the same day.
In addition, it can be constructed immediately without removing the existing floor when replacing old heating pipes, which reduces construction period and costs.
Stability
Without the use of harmful adhesives and no generation of harmful substances through eco-friendly process, low fire risk with flame resistant material and strong durability.
Features of NE Dry panel
Four characteristics of the NE Dry panel.
Heating costs and energy reduction
Saving more than 40% of heating cost
without concrete construction (wet heating system),
and high heat conductivity which is enabling heating
in a short time and reducing energy consumption
by shortening boiler operation time.
Robustness
No adverse effects from moisture as it is not
a concrete construction (wet heating system),
and improve more than 30% of the noise
between floors (reducing floor impact noise)
Fast and affordable construction
It's lightweight which is able to build and heat
on the same day. In addition, it can be constructed immediately without removing the existing floor
when replacing old heating pipes, which
reduces construction period and costs.
Stability
Without the use of harmful adhesives
and no generation of harmful substances
through eco-friendly process, low fire risk
with flame-resistant material and strong durability.
Advantages of NE Dry panel

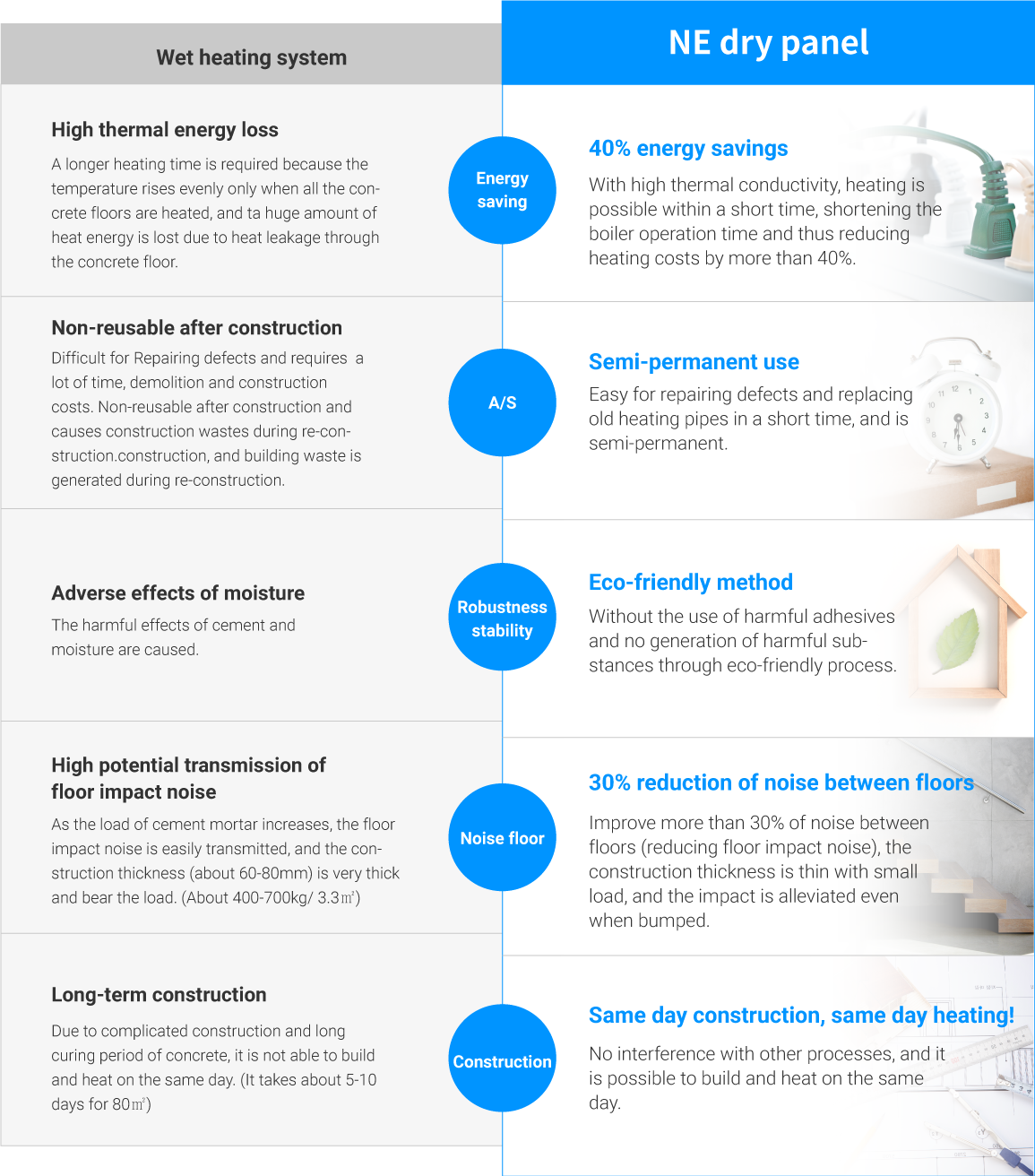

Differential advantages of NE Dry panel and wet heating system

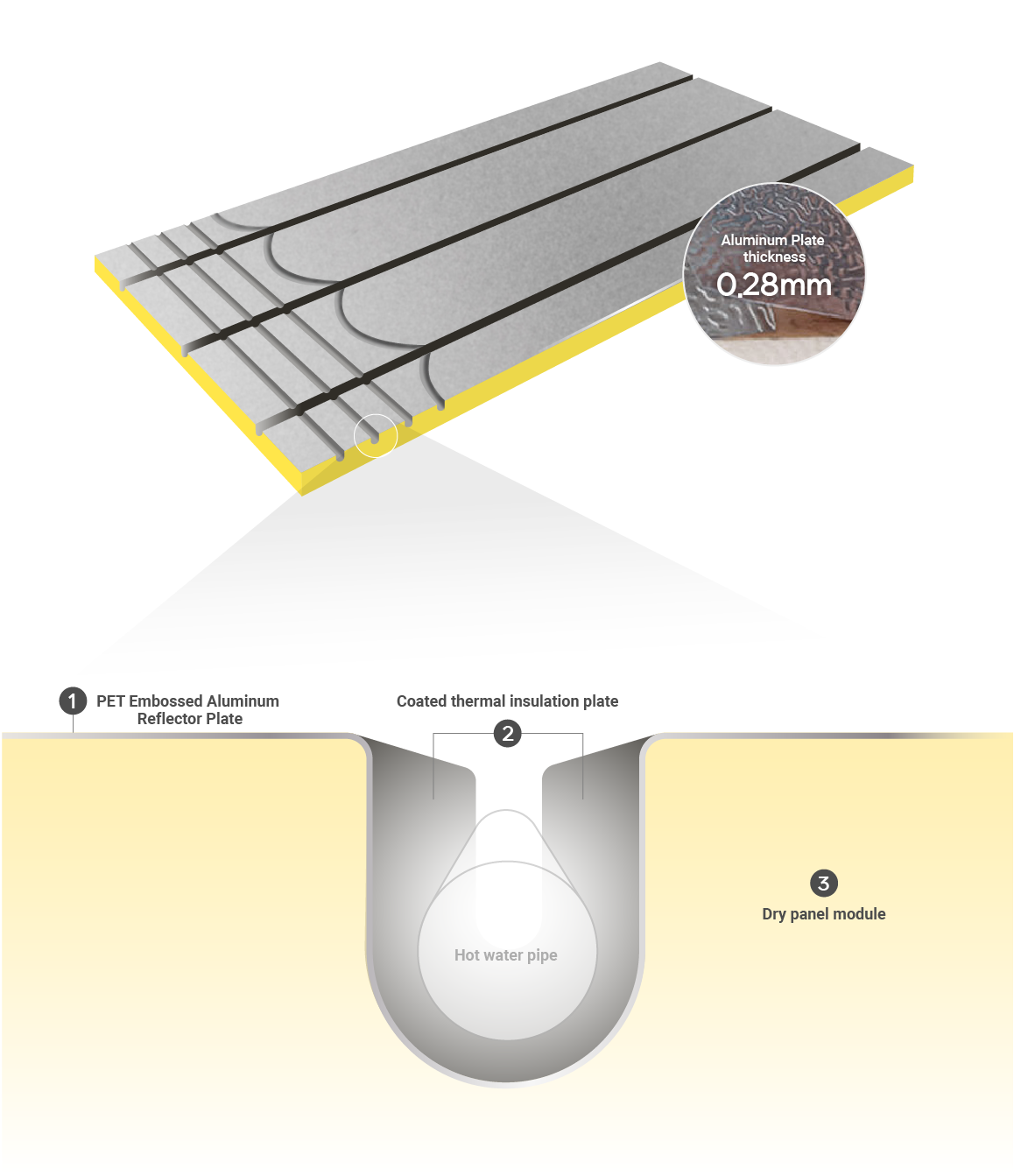

NE Dry panel structure
1 piece size 1200X 600mm
XPS Insulation Board Thickness 30mm
NE Dry panel (XPS foam board) for space heating- specific
PET embossed aluminum
reflector to improve heating saving efficiency
Embossed aluminum plate is the main material to improve the heating saving efficiency. By placing it between the insulating material and the insulated pipes and reflect the heat of the insulated pipes upward, it effectively reduces the loss of the heat facing the bottom to improve the temperature increase speed. Covering the XPS panel with an embossed aluminum plate allows the installation of water pipes of different diameters to distribute energy efficiently and evenly.
Coated thermal insulation plate
with excellent thermal insulation effect
The aluminum-coated thermal insulation plate has a thermal insulation reflective film between the XPS insulation panel and the insulated pipe, and plays a role of improving and reflecting the amount of heat with highly thermal insulation effect.
Dry panel module
easy-to-install
The NE dry panel is a heating system that uses space heating- specific dry panel module, which is easy-to-install at reasonable cost and can reduce heating costs. The XPS insulation panel has excellent insulation and waterproofing effects.

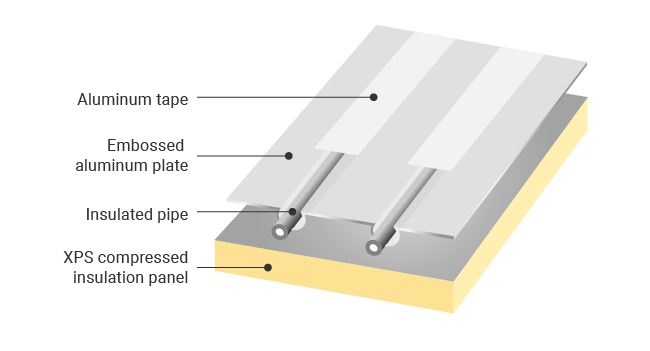

NE Dry panel system configuration
Dry panel module type
Installation of heating panels with Aluminum plates
Panel thickness 30mm
Embossed aluminum thickness 0.28mm
Panel size 1200X600X30mm
Insulated pipe outer diameter 14mm
Trustworthy choice,
NE Dry panel certification!

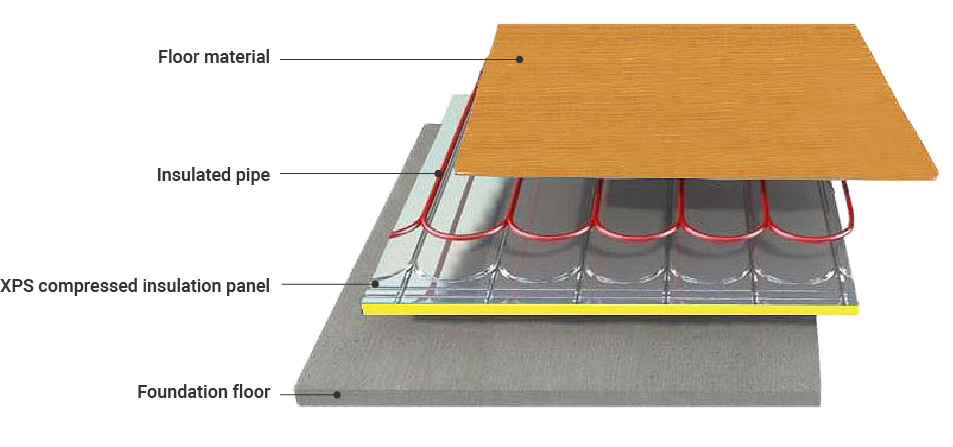

NE Dry panel installation section view
The NE dry panel is installed like this.
NE Dry panel construction process
NE dry panel installation photo
Specification
NE board | |||
Size (based on 1 piece) | 1200*600mm | ||
Insulation panel color | Yellow | ||
Insulated pipe outer diameter | 14mm | ||
Embossed aluminum plate thickness | 0.28mm | ||
XPS compressed insulation panel thickness | 30mm | ||
Density | 55 Kb /㎡ | ||
Thermal conductivity | 0.028W | ||
Compressive strength | Approximately 300 KPA | ||
Water absorption rate | <=1.5% | ||
Temperature used | -30~95℃ | ||
*Please note that the dry panel is an imported product, not a product produced by New Energy, therefore the shape, size, or certification may vary.
